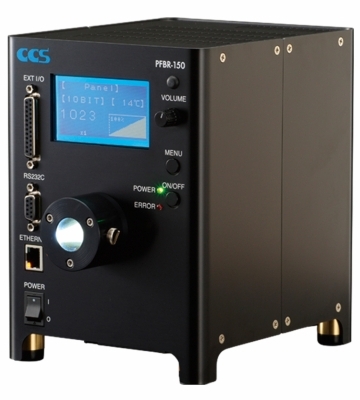

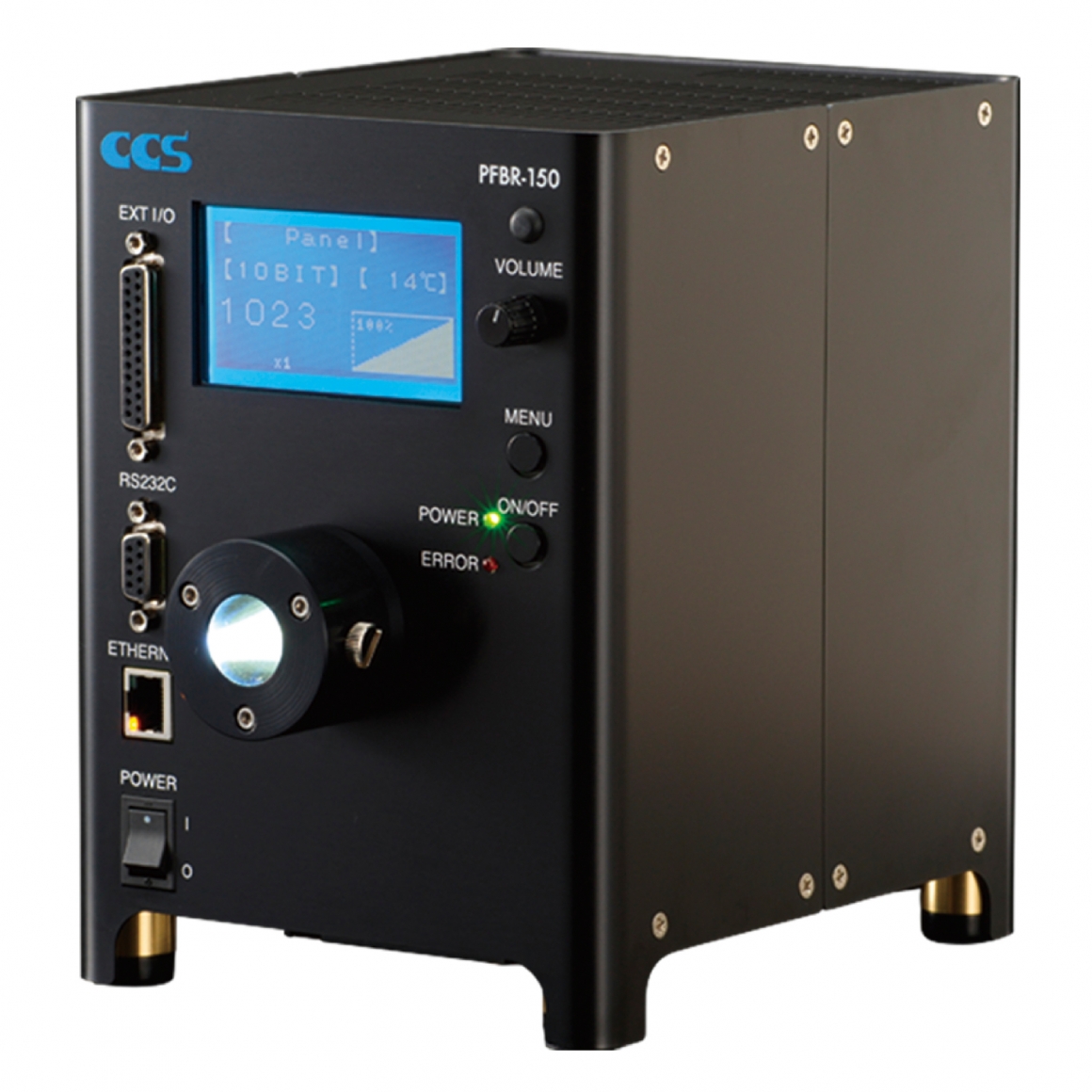

CCS LED光源 PFBR-150 Series 燈箱
Light SourceThe light output exceeds that of a 250-W metal halide light source.
-
Model
PFBR-150SW-MN
Applicable fiber
bundle diameter
Ø8 to Ø14 mm
Light distribution angle
Total angle of 30°
LED color
White
Correlated color
temperature (typ.)
6500 K
Drive method
Constant-current drive
Intensity control method
Variable-current control
Number of channels
1 channel
Input power supply
100 to 240 VAC (±10%), 50/60 Hz
Power consumption (typ.)
200 VA
Inrush current (typ.)
15 A at 100 VAC, 30 A at 200 VAC
* From a cold start
Ground leakage current
3.5 mA max. (264 VAC, 60 Hz, with no load)
Insulation withstand voltage (Input-FG)
1,500 VAC for one minute, cutoff current: 10 mA, 50 VDC, 20 MΩ min.
Operating environment
Temperature: 5 to 40°C, Humidity: 20 to 80%RH (with no condensation)
Altitude: 2,000 m max., Transient overcurrent: Category II, Pollution level: 2
Storage environment
Temperature: -15 to 60°C, Humidity: 20 to 85%RH (with no condensation)
Cooling method
Forced cooling
CE marking
Safety standard: EN61010-1 compliant
EMC standard: Complies with EN61000-6-2 and EN61000-6-4
Environmental regulations
RoHS compliant
Material, coating, and
surface processing
Aluminum alloy (black alumite)
Weight
3.9 kg max.
Accessories
One Instruction Guide and one 2-m 3-prong AC power cable
with ground terminal
