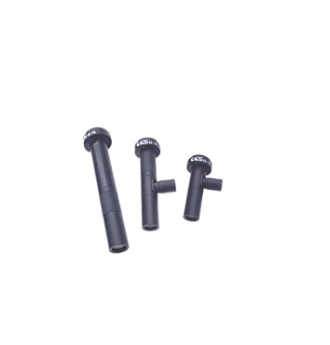

CCS Lens 工業鏡頭 SE-18 Series
-
型號
Model
鏡頭倍率
Optical magnification
(X)
有效光圈
F #
工作距離Working Distance(mm)
物像間距離
O/I (mm)
景深
Depth of Field(mm)
物側NA值
Object side NA
解析度
Optical
Resolution(
TV失真度
TV Distortion(%)
重量
Weight(g)
鏡頭接口
Lens Mount
最大適合攝像機
Suitable Sensor(inch)
SE-18VM2
2
F18.9
114±1
201.4
0.38
0.053
6.3
-0.0582
50
C
2/3”
SE-18VM4
4
F37.7
110±1
227.1
0.19
0.053
6.3
-0.0734
60
C
2/3”
SE-18VM6
6
F56.6
109±1
256.7
0.13
0.053
6.3
-0.0313
65
C
2/3”
SE-18SM2
2
F18.9
114±1
199.1
0.38
0.053
6.3
-0.0582
40
C
2/3”
SE-18SM4
4
F37.7
110±1
224.8
0.19
0.053
6.3
-0.0734
50
C
2/3”
SE-18SM6
6
F56.6
109±1
254.4
0.13
0.053
6.3
-0.0313
55
C
2/3”
1:The depth of field is a value calculated using 40
2:The resolution is a value calculated using a 550 nm wavelength. The specifications above are values based on the optical design.Differences between individual devices may occur due to assembly accuracy, etc.
