CCS Lens 工業鏡頭 SE-16 Series

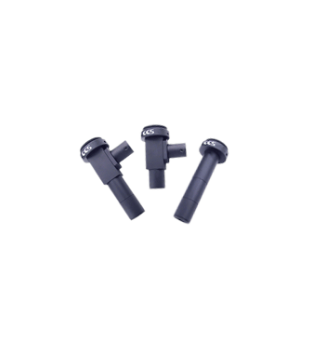

These original Macro Lenses achieve both "high performance" and "low cost." The product lineup provides magnifications of 0.5x, 1x, and 2x. Both straight and coaxial lenses are available.

加入追蹤

產品內容

型號 Model	鏡頭倍率 Optical magnification (X)	有效光圈 F #	工作距離Working Distance(mm)	物像間距離 O/I (mm)	景深 Depth of Field(mm)	物側NA值 Object side NA	解析度 Optical Resolution(μm)	TV失真度 TV Distortion(%)	重量 Weight(g)	鏡頭接口 Lens Mount	最大適合攝像機 Suitable Sensor(inch)
SE-16VM05	0.5	F5.92	107	179.9	1.9	0.042	8	-0.0265	41.9	C	1/2”
SE-16VM1	1	F7.88	67	160	0.62	0.065	5.2	-0.014	46.3	C	1/2”
SE-16VM2	2	F11.7	47	180.6	0.23	0.087	3.9	-0.0055	55.8	C	1/2”
SE-16SM05	0.5	F5.93	107	179.9	1.9	0.042	8	-0.0013	29.6	C	1/2”
SE-16SM1	1	F7.74	67	160	0.62	0.065	5.2	-0.0009	34	C	1/2”
SE-16SM2	2	F11.5	47	180.6	0.23	0.087	3.9	-0.0002	43.5	C	1/2”

1:The depth of field is a value calculated using 40 μm as the permissible circle of confusion.

2:The resolution is a value calculated using a 550 nm wavelength. The specifications above are values based on the optical design.Differences between individual devices may occur due to assembly accuracy, etc.
