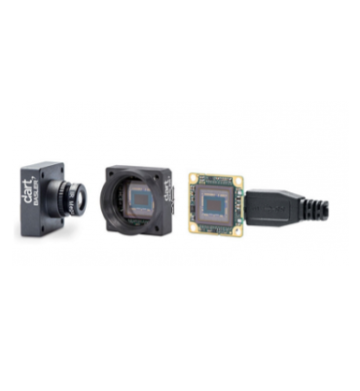

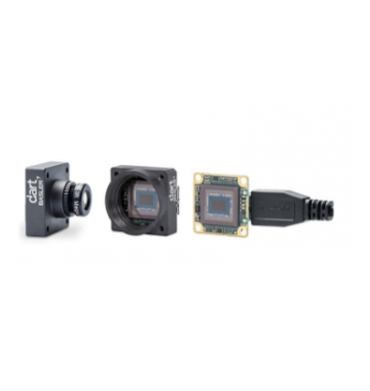

Basler DART Series 面阵相机
USB 3.0-
相机型号
解析度
取像速度
彩色/黑白
像素尺寸
感光芯片尺寸
感光芯片类型
快门
daA1280-54uc
1280 px x 960 px
54 fps
Color
3.75 µm x 3.75 µm
4.8 mm x 3.6 mm
CMOS
Global Shutter
daA1280-54uc (S-Mount)
1280 px x 960 px
54 fps
Color
3.75 µm x 3.75 µm
4.8 mm x 3.6 mm
CMOS
Global Shutter
daA1280-54uc (CS-Mount)
1280 px x 960 px
54 fps
Color
3.75 µm x 3.75 µm
4.8 mm x 3.6 mm
CMOS
Global Shutter
daA1280-54um
1280 px x 960 px
54 fps
Mono
3.75 µm x 3.75 µm
4.8 mm x 3.6 mm
CMOS
Global Shutter
daA1280-54um (S-Mount)
1280 px x 960 px
54 fps
Mono
3.75 µm x 3.75 µm
4.8 mm x 3.6 mm
CMOS
Global Shutter
daA1280-54um (CS-Mount)
1280 px x 960 px
54 fps
Mono
3.75 µm x 3.75 µm
4.8 mm x 3.6 mm
CMOS
Global Shutter
daA1600-60uc
1600 px x 1200 px
60 fps
Color
4.5 µm x 4.5 µm
7.2 mm x 5.4 mm
CMOS
Global Shutter
daA1600-60uc (S-Mount)
1600 px x 1200 px
60 fps
Color
4.5 µm x 4.5 µm
7.2 mm x 5.4 mm
CMOS
Global Shutter
daA1600-60uc (CS-Mount)
1600 px x 1200 px
60 fps
Color
4.5 µm x 4.5 µm
7.2 mm x 5.4 mm
CMOS
Global Shutter
daA1600-60um
1600 px x 1200 px
60 fps
Mono
4.5 µm x 4.5 µm
7.2 mm x 5.4 mm
CMOS
Global Shutter
daA1600-60um (S-Mount)
1600 px x 1200 px
60 fps
Mono
4.5 µm x 4.5 µm
7.2 mm x 5.4 mm
CMOS
Global Shutter
daA1600-60um (CS-Mount)
1600 px x 1200 px
60 fps
Mono
4.5 µm x 4.5 µm
7.2 mm x 5.4 mm
CMOS
Global Shutter
daA1920-15um
1920 px x 1080 px
15 fps
Mono
2.2 µm x 2.2 µm
4.2 mm x 2.4 mm
CMOS
Rolling Shutter
daA1920-30uc
1920 px x 1080 px
30 fps
Color
2.2 µm x 2.2 µm
4.2 mm x 2.4 mm
CMOS
Rolling Shutter
daA1920-30uc (S-Mount)
1920 px x 1080 px
30 fps
Color
2.2 µm x 2.2 µm
4.2 mm x 2.4 mm
CMOS
Rolling Shutter
daA1920-30uc (CS-Mount)
1920 px x 1080 px
30 fps
Color
2.2 µm x 2.2 µm
4.2 mm x 2.4 mm
CMOS
Rolling Shutter
daA1920-30um
1920 px x 1080 px
30 fps
Mono
2.2 µm x 2.2 µm
4.2 mm x 2.4 mm
CMOS
Rolling Shutter
daA1920-30um (S-Mount)
1920 px x 1080 px
30 fps
Mono
2.2 µm x 2.2 µm
4.2 mm x 2.4 mm
CMOS
Rolling Shutter
daA1920-30um (CS-Mount)
1920 px x 1080 px
30 fps
Mono
2.2 µm x 2.2 µm
4.2 mm x 2.4 mm
CMOS
Rolling Shutter
daA1920-160uc
1920 px x 1200 px
160 fps
Color
3.45 µm x 3.45 µm
6.6 mm x 4.2 mm
CMOS
Global Shutter
daA1920-160uc (S-Mount)
1920 px x 1200 px
160 fps
Color
3.45 µm x 3.45 µm
6.6 mm x 4.2 mm
CMOS
Global Shutter
daA1920-160uc (CS-Mount)
1920 px x 1200 px
160 fps
Color
3.45 µm x 3.45 µm
6.6 mm x 4.2 mm
CMOS
Global Shutter
daA1920-160um
1920 px x 1200 px
160 fps
Mono
3.45 µm x 3.45 µm
6.6 mm x 4.2 mm
CMOS
Global Shutter
daA1920-160um (S-Mount)
1920 px x 1200 px
160 fps
Mono
3.45 µm x 3.45 µm
6.6 mm x 4.2 mm
CMOS
Global Shutter
daA1920-160um (CS-Mount)
1920 px x 1200 px
160 fps
Mono
3.45 µm x 3.45 µm
6.6 mm x 4.2 mm
CMOS
Global Shutter
daA2500-14uc
2592 px x 1944 px
14 fps
Color
2.2 µm x 2.2 µm
5.7 mm x 4.3 mm
CMOS
Rolling Shutter
daA2500-14uc (S-Mount)
2592 px x 1944 px
14 fps
Color
2.2 µm x 2.2 µm
5.7 mm x 4.3 mm
CMOS
Rolling Shutter
daA2500-14uc (CS-Mount)
2592 px x 1944 px
14 fps
Color
2.2 µm x 2.2 µm
5.7 mm x 4.3 mm
CMOS
Rolling Shutter
daA2500-14um
2592 px x 1944 px
14 fps
Mono
2.2 µm x 2.2 µm
5.7 mm x 4.3 mm
CMOS
Rolling Shutter
daA2500-14um (S-Mount)
2592 px x 1944 px
14 fps
Mono
2.2 µm x 2.2 µm
5.7 mm x 4.3 mm
CMOS
Rolling Shutter
daA2500-14um (CS-Mount)
2592 px x 1944 px
14 fps
Mono
2.2 µm x 2.2 µm
5.7 mm x 4.3 mm
CMOS
Rolling Shutter
daA3840-45uc
3840 px x 2160 px
45 fps
Color
2 µm x 2 µm
7.7 mm x 4.3 mm
CMOS
Rolling Shutter
daA3840-45uc (S-Mount)
3840 px x 2160 px
45 fps
Color
2 µm x 2 µm
7.7 mm x 4.3 mm
CMOS
Rolling Shutter
daA3840-45uc (CS-Mount)
3840 px x 2160 px
45 fps
Color
2 µm x 2 µm
7.7 mm x 4.3 mm
CMOS
Rolling Shutter
daA3840-45um
3840 px x 2160 px
45 fps
Mono
2 µm x 2 µm
7.7 mm x 4.3 mm
CMOS
Rolling Shutter
daA3840-45um (S-Mount)
3840 px x 2160 px
45 fps
Mono
2 µm x 2 µm
7.7 mm x 4.3 mm
CMOS
Rolling Shutter
daA3840-45um (CS-Mount)
3840 px x 2160 px
45 fps
Mono
2 µm x 2 µm
7.7 mm x 4.3 mm
CMOS
Rolling Shutter
daA2448-70uc
2448 px x 2048 px
74 fps
Color
2.74 µm x 2.74 µm
6.7 mm x 5.6 mm
CMOS
Global Shutter
daA2448-70uc (S-Mount)
2448 px x 2048 px
74 fps
Color
2.74 µm x 2.74 µm
6.7 mm x 5.6 mm
CMOS
Global Shutter
daA2448-70uc (CS-Mount)
2448 px x 2048 px
74 fps
Color
2.74 µm x 2.74 µm
6.7 mm x 5.6 mm
CMOS
Global Shutter
daA2448-70um
2448 px x 2048 px
74 fps
Mono
2.74 µm x 2.74 µm
6.7 mm x 5.6 mm
CMOS
Global Shutter
daA2448-70um (S-Mount)
2448 px x 2048 px
74 fps
Mono
2.74 µm x 2.74 µm
6.7 mm x 5.6 mm
CMOS
Global Shutter
daA2448-70um (CS-Mount)
2448 px x 2048 px
74 fps
Mono
2.74 µm x 2.74 µm
6.7 mm x 5.6 mm
CMOS
Global Shutter
