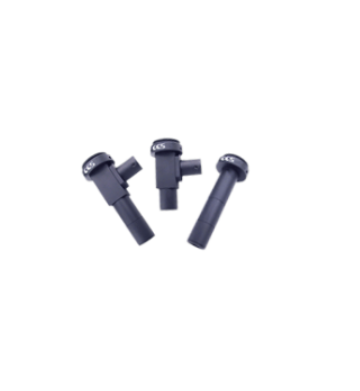

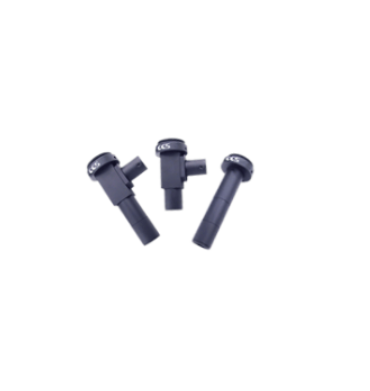

CCS Lens 工业镜头 SE-16 Series
These original Macro Lenses achieve both "high performance" and "low cost." The product lineup provides magnifications of 0.5x, 1x, and 2x. Both straight and coaxial lenses are available.
-
型号
Model镜头倍率
Optical magnification(X)
有效光圈
F #工作距离
Working Distance(mm)O/I (mm)
景深
Depth of Field(mm)
物侧NA
Object side NA
解析度
Optical
Resolution(μm)
TV失真度
TV Distortion(%)
重量
Weight(g)
镜头接口
Lens Mount最大适合摄像机
Suitable Sensor(inch)
SE-16VM05
0.5
F5.92
107
179.9
1.9
0.042
8
-0.0265
41.9
C
1/2”
SE-16VM1
1
F7.88
67
160
0.62
0.065
5.2
-0.014
46.3
C
1/2”
SE-16VM2
2
F11.7
47
180.6
0.23
0.087
3.9
-0.0055
55.8
C
1/2”
SE-16SM05
0.5
F5.93
107
179.9
1.9
0.042
8
-0.0013
29.6
C
1/2”
SE-16SM1
1
F7.74
67
160
0.62
0.065
5.2
-0.0009
34
C
1/2”
SE-16SM2
2
F11.5
47
180.6
0.23
0.087
3.9
-0.0002
43.5
C
1/2”
1:The depth of field is a value calculated using 40 μm as the permissible circle of confusion.
2:The resolution is a value calculated using a 550 nm wavelength. The specifications above are values based on the optical design.Differences between individual devices may occur due to assembly accuracy, etc.
