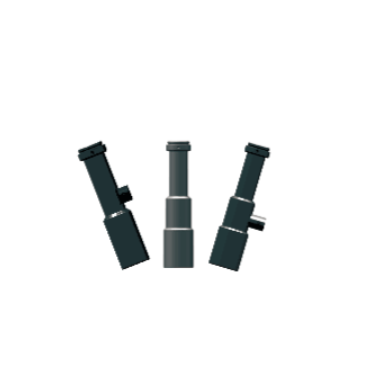

CCS Lens 工业镜头 SE-110-5M Series

High-resolution Telecentric Lenses

The CCS "High-resolution" Telecentric Lenses are ideal for the combination with megapixel cameras.
Working distance is 110 mm.
Both coaxial and straight types are available.

加入追踪

产品内容

型号 Model	镜头倍率 Optical magnification (X)	有效光圈 F #	工作距离 Working Distance(mm)	O/I (mm)	景深 Depth of Field(mm)	物侧NA Object side NA	解析度 Optical Resolution(μm)	TV失真度 TV Distortion(%)	重量 Weight(g)	镜头接口 Lens Mount	最大適合攝像機 Suitable Sensor(inch)
SE-110ST03-5M	0.3±5%	6.5	110.3±3.3	268.2	5.75	0.023	14.5	0.026	211	C	2/3
SE-110VT03-5M	0.3±5%	6.5	110.3±3.3	268.2	5.75	0.023	14.5	0.026	212	C	2/3

型号
Model

镜头倍率
Optical magnification

(X)

有效光圈
F #

工作距离
Working Distance(mm)

O/I (mm)

景深

Depth of Field(mm)

物侧NA

Object side NA

解析度

Optical

Resolution(μm)

TV失真度

TV Distortion(%)

重量

Weight(g)

镜头接口
Lens Mount

最大適合攝像機

Suitable Sensor(inch)

SE-110ST03-5M

0.3±5%

6.5

110.3±3.3

268.2

5.75

0.023

14.5

0.026

211

2/3

SE-110VT03-5M
